addList

TRIAL / ADVANCED / PREMIUM

Inserts (nested) lists into the Word document.

Description

public addList (array $itemList [, mixed $styleType[, array $options]] )

This method allows the insertion of lists (numbered or with bullets) into your Word document.

You may also include nested lists by means of nested arrays of data and fully customize its contents with the use of WordML fragments.

The following style types are always available:

Clear: with no bullet or indentation. This is the default value.
Unordered: the standard bulleted list of Word or HTML ul tag.
Ordered: the standard ordered list of Word or HTML ol tag.

You may also check all the current available lists styles of your phpdocx base template by means of the parseStyles method. This method returns a Word document including the required phpdocx code to insert the lists that are generated within that document.

You may also use the list styles created via the createListStyle method using the name you gave to your custom list.

Parameters

itemList

The array of data with the (nested) list of items. The possible values of each array entry are:

A string of text.
An inline WordFragment: all block elements are removed prior to insertion.

An array with data and style keys can be used to set override styles.

styleType

(mixed), 0 (clear), 1 (inordinate) (default), 2 (numerical) or the name of the created list

options

The possible keys and values are (required options are shown with yellow background):

Key	Type	Description
bold	bool	If true the text will be shown in bold characters.
caps	bool	If true displays text in capital letters.
color	string	Hexadecimal color value: 'FF0000', '000000'...
font	string	Font family: 'Arial', Calibri'...
fontSize	int	Font size in points.
highlightColor	string	Highlights the run of text. The available colors are: black, blue, cyan, green, magenta, red, yellow, white, darkBlue, darkCyan, darkGreen, darkMagenta, darkRed, darkYellow, darkGray, lightGray, none.
italic	string	If true displays the text in italics.
numId	positive int	Sets a numId value. Useful to generate a continue numbering.
outlineLvl	int	Heading level (1-9).
pStyle	string	Paragraph style to be used.
rtl	bool	Sets to true for right to left languages like Hebrew or Arabic.
smallCaps	bool	If true displays text in small capital letters.
underline	string	Underlines text. Possible values are: single, words, double, dotted, dash and wave.
useWordFragmentStyles	bool	Use WordFragment paragraph styles.

Code samples

Example #1

require_once 'classes/CreateDocx.php';

$docx = new CreateDocx();

$itemList = array(
    'Line 1',
    'Line 2',
    'Line 3',
    'Line 4',
    'Line 5'
);

// set the style type to 1: unordered list
$docx->addList($itemList, 1);

$docx->createDocx('output');

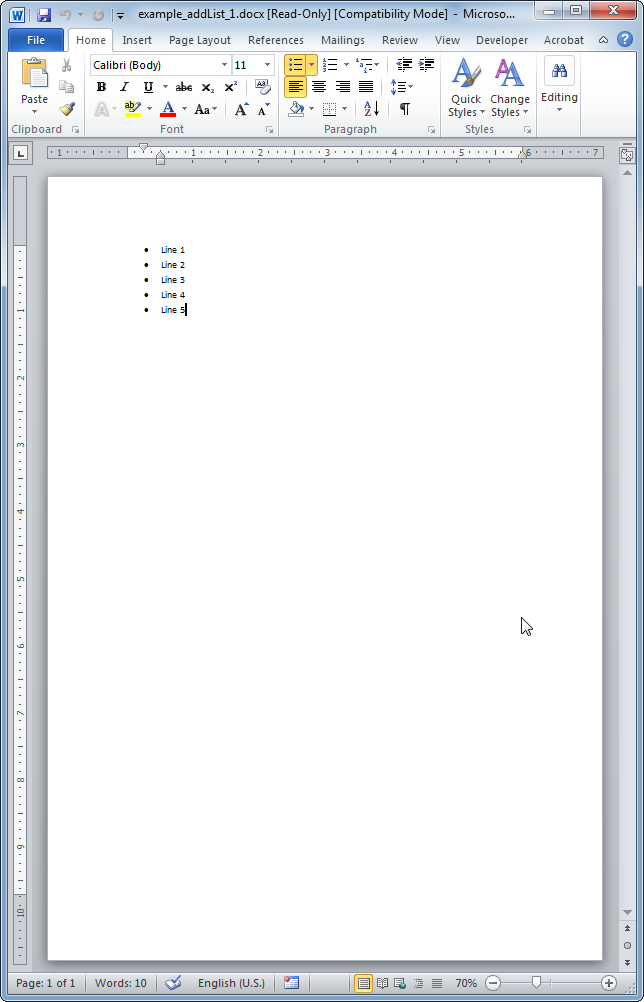

The resulting Word document looks like:

Example #2

require_once 'classes/CreateDocx.php';

$docx = new CreateDocx();

$itemList = array(
    'Line 1',
    array(
        'Line A',
        'Line B',
        'Line C'
    ),
    'Line 2',
    'Line 3',
);

// set the style type to 2: ordered list
$docx->addList($itemList, 2);

$docx->createDocx('output');

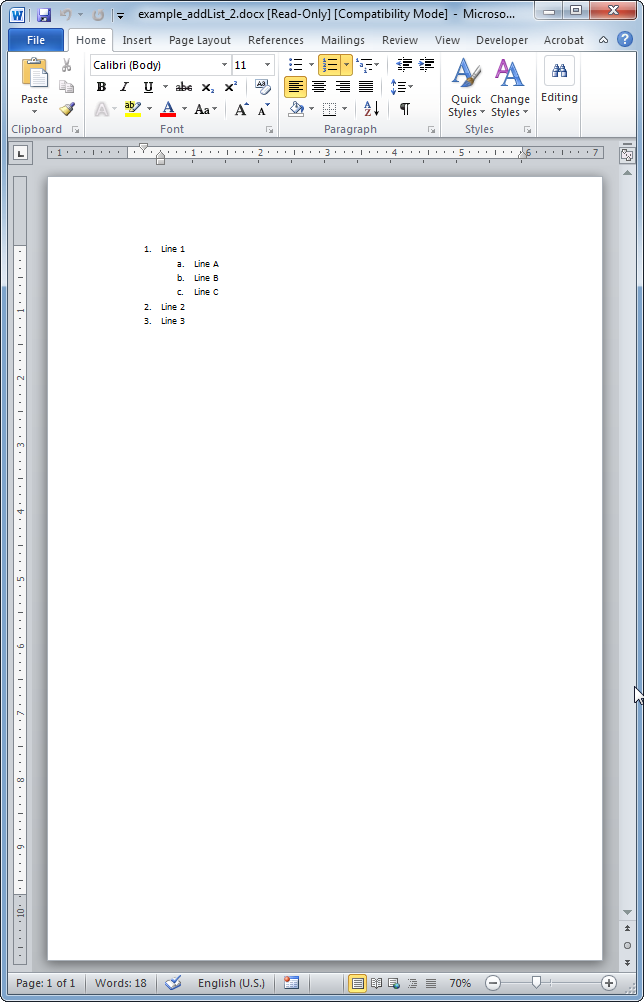

The resulting Word document looks like:

Example #3

require_once 'classes/CreateDocx.php';

$docx = new CreateDocx();

// some formatted text preparedfor insertion in the list
$textData = new WordFragment($docx);
$text = array();
$text[] = array('text' => 'We insert some ');
$text[] = array('text' => 'bold text', 'b' => 'on');
$textData->addText($text);

// also, some simple HTML to illustrate the fexibility of the method
$htmlData = new WordFragment($docx);
$html = '<i>Some HTML code</i> with a <a href="http://www.phpdocx.com">link</a>';
$htmlData->embedHTML($html);
$itemList = array(
    'In this example we use a custom list (val = 5) that comes bundled with the default phpdocx template.',
    array(
        $textData,
        'Line B',
        'Line C'
    ),
    $htmlData,
    'Line 3',
);

// style type set to 5: other predefined Word list style
$docx->addList($itemList, 5);

$docx->createDocx('output');

The resulting Word document looks like:

Example #4

require_once 'classes/CreateDocx.php';

$docx = new CreateDocx();

$itemList = array(
    'Line 1',
    'Line 2',
    'Line 3',
    'Line 4',
    'Line 5',
);

// establish some global run properties for each list item
$options = array(
    'font' => 'Arial',
    'italic' => true,
    'fontSize' => 14,
    'color' => 'b70000',
);

// style type set to 1: unordered list
$docx->addList($itemList, 1, $options);

$docx->createDocx('output');

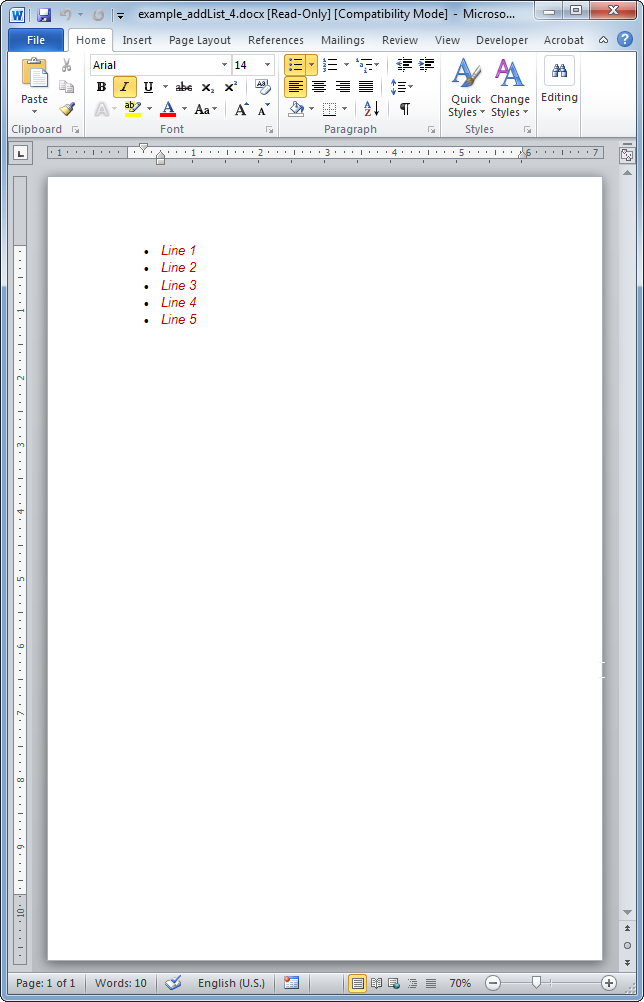

The resulting Word document looks like:

Release notes

phpdocx 11.0:
- limited numId values in lists to 32767 to support restrictions from the new MS Word revisions.

phpdocx 9.5:
- supported overwriting styles in level lists.

phpdocx 7.5:
- numId option.

phpdocx 6.5:
- useWordFragmentStyles option.
