addSVG

TRIAL / ADVANCED / PREMIUM

Inserts an SVG into the Word document.

Description

public addSVG ( string $svg, [array $options] )

You may use this method to insert an SVG content, as file or string, into your Word document.

To keep compatibility with DOCX readers not compatible with SVG images, a PNG image with the same content is added too in the document.

This method requires the PHP ImageMagick extension installed and enabled.

Parameters

svg

File path or SVG content.

options

The possible keys and values are:

Key	Type	Description
borderColor	string	hexadecimal color: FF0000.
borderStyle	string	Possible values are: solid dot dash lgDash dashDot lgDashDot lgDashDotDot sysDash sysDot sysDashDot sysDashDotDot
borderWidth	int	Given in emus (1cm = 360000 emus).
caption	array	'bookmarkName' (string) set a custom bookmark name 'color' (string) text color 'label' (string) set a custom label (Figure by default) 'lineSpacing' (int) text line spacing 'showLabel' (bool) show default value Figure 'styleName' (string) allow setting a custom style name, useful to generate table of figures based on style names 'sz' (int) text size 'text' (string) text of the caption
dpi	int	Dots per inch.
float	string	(left, right, center) floating image. It only applies if textWrap is not inline (default value).
height	int	Image height in pixels.
horizontalOffset	int	Given in emus (1cm = 360000 emus). Only applies if the image is not floating.
hyperlink	string	Image link.
imageAlign	string	Image alignment: right, center...
relativeToHorizontal	string	margin (default), page, column, character, leftMargin, rightMargin, insideMargin, outsideMargin. Not compatible with inline text wrapping.
relativeToVertical	string	margin, page, line (default), paragraph, topMargin, bottomMargin, insideMargin, outsideMargin. Not compatible with inline text wrapping.
resolution	array	x, y resolution.
spacingTop	int	Spacing top in pixels.
spacingBottom	int	Spacing bottom in pixels.
spacingLeft	int	Spacing left in pixels.
spacingRight	int	Spacing right in pixels.
target	string	document (default value), defaultHeader, firstHeader, evenHeader, defaultFooter, firstFooter, evenFooter, comment, endnote or footnote.
textWrap	int	Text wrap: 0 (inline) 1 (square) 2 (front) 3 (back) 4 (top and bottom) 5 (clear)
verticalAlign	string	top, center, bottom. To be used with relativeFromVertical.
verticalOffset	int	Given in emus (1cm = 360000 emus).
width	int	Image width in pixels.

Exceptions

ImageMagick is not available.

Image error.

Code samples

Example #1

require_once 'classes/CreateDocx.php';

$docx = new CreateDocx();

$docx->addText('Add an SVG image:');

$options = array(
    'imageAlign' => 'center',
    'spacingTop' => 10,
    'spacingBottom' => 0,
    'spacingLeft' => 0,
    'spacingRight' => 20,
    'textWrap' => 0,
    'borderStyle' => 'lgDash',
    'borderWidth' => 6,
    'borderColor' => 'FF0000',
);

$docx->addSVG('image.svg', $options);

$docx->createDocx('output');

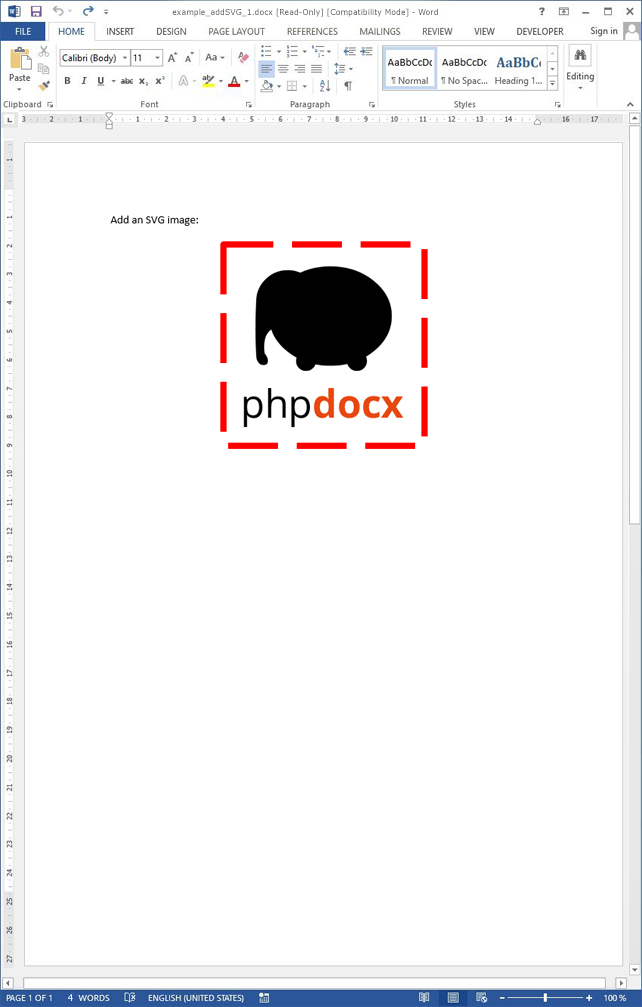

The resulting Word document looks like:

Example #2

require_once 'classes/CreateDocx.php';

$docx = new CreateDocx();

$docx->addText('Add an SVG image:');

$svg = '
<svg height="100" width="100">
  <circle cx="50" cy="50" r="40" stroke="black" stroke-width="3" fill="red" />
</svg>';

$docx->addSVG($svg);

$docx->createDocx('output');

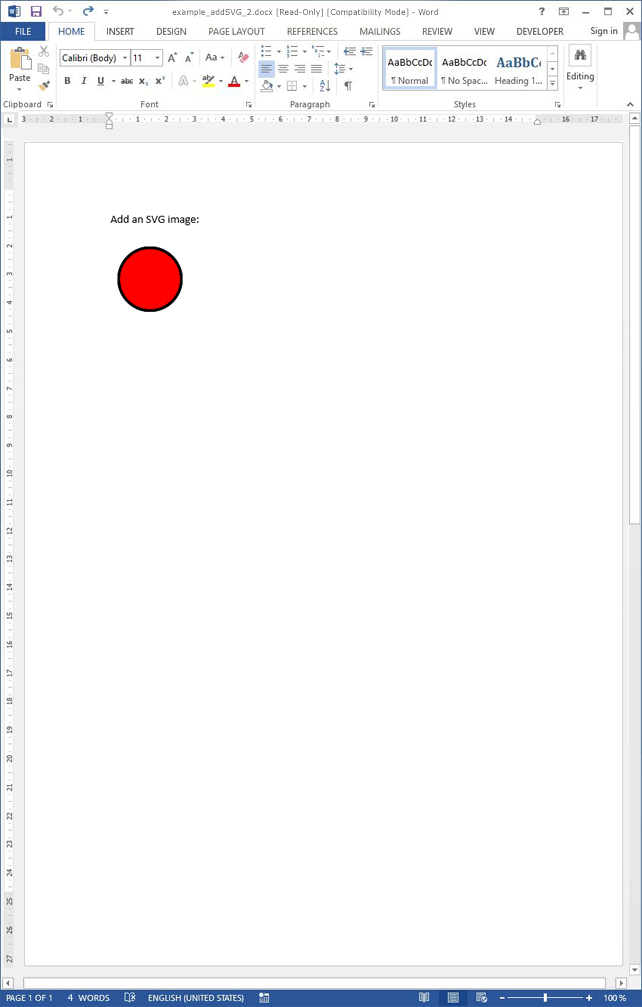

The resulting Word document looks like:

Release notes

phpdocx 13.0:
- resolution option.

phpdocx 12.0:
- new method.
