pdx:addHeader

Inserts headers into the Word document.

Note

You are reading the XML API documentation. For the PHP API method please go to addHeader.

Description

Element definition

<pdx:content>
    <pdx:addHeader>
        <pdx:default pdx:wordFragmentName="" />
        <pdx:even pdx:wordFragmentName="" />
        <pdx:first pdx:wordFragmentName="" />
    </pdx:addHeader>
</pdx:content>

It is possible to include different headers for:

the first page or title page.
even pages.
odd pages (this one is the default header for the whole document if no different headers are defined for the first or even pages).

The contents of the different headers are defined via the use of WordFragments. These header WordFragments allow the insertion of:

text paragraphs
current date and/or hour
images
links
lists
page numbers
shapes
tables
HTML content

You may also import the headers of an existing DOCX document via the ImportHeadersAndFooters method.

Attributes and sub-elements

headers

Key	Description
default	The WordML fragment object containing the contents for the default (odd pages) header.
even	The WordML fragment object containing the contents for the even pages header.
first	The WordML fragment object containing the contents for the first (title) page header.

Code samples

Example #1

config.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:config>
        <pdx:template pdx:path="/var/www/phpdocx/samples/files/empty.docx" />
        <pdx:output pdx:name="output" pdx:type="docx" />
    </pdx:config>
</pdx:document>

content.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:content>
        <pdx:wordFragments>
            <pdx:wordFragment pdx:wordFragmentName="textFragment" pdx:target="defaultHeader">
                <pdx:content>
                    <pdx:addImage pdx:dpi="300">
                        <pdx:data pdx:dataId="" pdx:dataType="text">/var/www/phpdocx/samples/files/img/image.png</pdx:data>
                    </pdx:addImage>
                </pdx:content>
            </pdx:wordFragment>
        </pdx:wordFragments>
        <pdx:addHeader>
            <pdx:default pdx:wordFragmentName="textFragment" />
        </pdx:addHeader>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">This document has a header with just one image.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
    </pdx:content>
</pdx:document>

settings.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:settings>
    </pdx:settings>
</pdx:document>

PHP code

require_once 'path_to_phpdocx/classes/CreateDocx.php';

$docx = new XMLAPI('config.xml');
$docx->setDocumentProperties('settings.xml');
$docx->addContent('content.xml');

$docx->render();

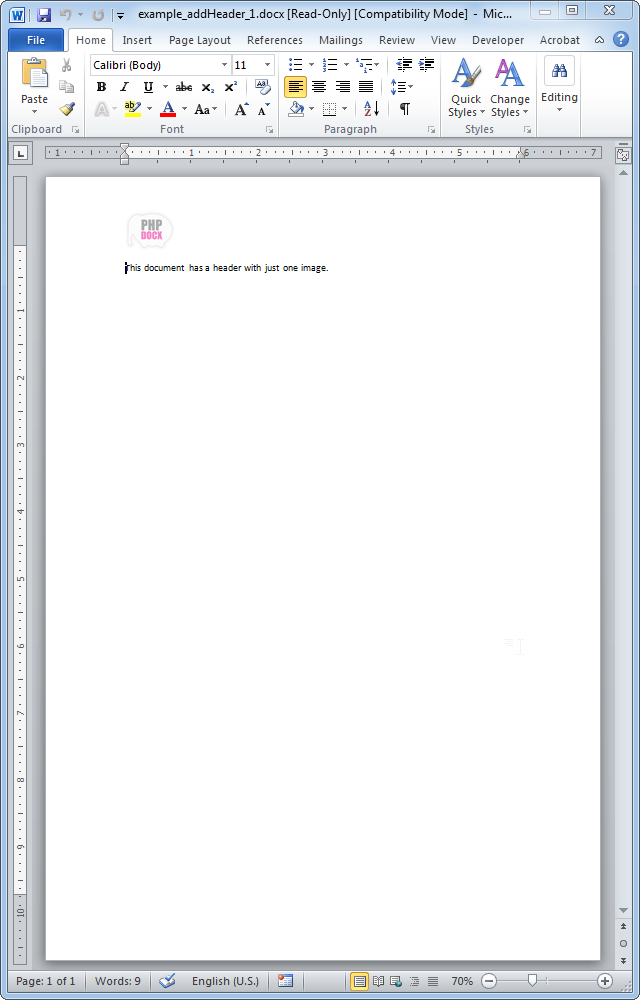

The resulting Word document looks like:
