pdx:addStructuredDocumentTag

Inserts different types of Structured Document Tags into the Word document.

Note

You are reading the XML API documentation. For the PHP API method please go to addStructuredDocumentTag.

Description

Element definition

<pdx:content>
    <pdx:addStructuredDocumentTag pdx:sdtType="comboBox|date|dropdownList|richText" pdx:wordFragmentName="">
        <pdx:alias pdx:value="" />
        <pdx:calendar pdx:value="" />
        <pdx:dateFormat pdx:value="" />
        <pdx:listItems>
            <pdx:item pdx:value="">item</pdx:item>
            <pdx:item pdx:value="">item</pdx:item>
        </pdx:listItems>
        <pdx:local pdx:value="" />
        <pdx:lock pdx:value="sdtLocked|contentLocked|unlocked|sdtContentLocked" />
        <pdx:placeholderText pdx:value="" />
        <pdx:tag pdx:value="" />
        <pdx:temporary pdx:value="" />
        <pdx:paragraphStyle />
    </pdx:addStructuredDocumentTag>
<pdx:content>

This element allows to insert structured document tags (sdt) of various kinds into your Word document:

checkboxes
combo boxes
date pickers
dropdown lists
rich text

Attributes and sub-elements

sdtType

Possible values are:

checkbox
comboBox
date
dropdownList
richText

For a detailed description of the available date formats for the date picker structured document tag, please, check the documentation of the addDateAndHour element.

options

Specific options for structured document tags:

Key	Description
alias	The label that will be shown in the structured document tag.
calendar	Calendar type. Default type is gregorian. Possible values include: gregorian, hijri, hebrew, taiwan, japan, thai, korea, saka, gregorianXlitEnglish, gregorianXlitFrench.
dateFormat	The default date format is M/d/yyyy. See addDateAndHour for available date formats.
listItems	An array of arrays each one of them containing the text to show and value.
local	ISO code. The default value is en-US.
lock	Locking properties: sdtLocked (cannot be deleted). contentLocked (contents cannot be edited directly). unlocked (default value: no locking). sdtContentLocked (contents cannot be directly edited or the structured tag removed).
placeholderText	Text to be shown by default.
tag	A programmatic tag.
temporary	If true the structured tag is removed after editing.
rawWordML	If true one may store the output into a variable.

This is an array including all general paragraph wide options.

The possible keys and values of this array are:

Key	Description
pStyle	Word style to be used. Run parseStyles() method to check all available paragraph styles.
backgroundColor	Hexadecimal color value: FF0000, 000000...
bidi	Set to true for right to left languages like Hebrew or Arabic.
bold	If true the text will be shown in bold characters.
border	Available values are: none (default) double dashed outset inset threeDEmboss threeDEngrave You can access to the complete list in: Border Styles.
borderBottom	Overwrites the general border type for the bottom border of the paragraph.
borderLeft	Overwrites the general border type for the left border of the paragraph.
borderTop	Overwrites the general border type for the top border of the paragraph.
borderRight	Overwrites the general border type for the right border of the paragraph.
borderColor	Hexadecimal color value: FF0000, 000000...
borderBottomColor	Overwrites the general border color for the bottom border of the paragraph.
borderLeftColor	Overwrites the general border color for the left border of the paragraph.
borderTopColor	Overwrites the general border color for the top border of the paragraph.
borderRightColor	Overwrites the general border color for the right border of the paragraph.
borderSpacing	Separation between border and text in points.
borderBottomSpacing	Overwrites the general border spacing for the bottom border of the paragraph.
borderLeftSpacing	Overwrites the general border spacing for the left border of the paragraph.
borderTopSpacing	Overwrites the general border spacing for the top border of the paragraph.
borderRightSpacing	Overwrites the general border spacing for the right border of the paragraph.
borderWidth	Border width in eigths of a point.
borderBottomWidth	Overwrites the general border width for the bottom border of the paragraph.
borderLeftWidth	Overwrites the general border width for the left border of the paragraph.
borderTopWidth	Overwrites the general border width for the top border of the paragraph.
borderRightWidth	Overwrites the general border width for the right border of the paragraph.
caps	If true displays text in capital letters.
color	Hexadecimal color value: 'FF0000', '000000'...
contextualSpacing	If true ignores spacing above and below the paragraph whenever the neighbouring paragraphs use the same Word style (false by default).
doubleStrikeThrough	If true displays text in doubleStrikeThrough.
em	Emphasis mark type: 'none', 'dot', 'circle', 'comma', 'underDot'.
firstLineIndent	First line indentation in twentieths of a point (twips).
font	Font family: 'Arial', Calibri'...
fontSize	Font size in points.
hanging	Paragraph hanging in twentieths of a point (twips).
headingLevel	The heading level if you want this paragraph to be a heading.
italic	If true displays the text in italics.
indentLeft	Left margin in points.
indentRight	Right margin in points.
keepLines	Keeps (whenever possible) all the current paragraph lines on the same page (default value is false).
keepNext	Keeps (whenever possible) in the same page the current paragraph with next paragraph (default value is false).
lineSpacing	120, 240 (standard), 360, 480... (in twentieths of a point).
pageBreakBefore	If true forces a page break before the paragraph.
position	Position value. Positive value for raised and negative value for lowered.
rtl	Set to true for right to left languages like Hebrew or Arabic.
scaling	Scaling value, 100 is the default value.
smallCaps	If true displays text in small capital letters.
spacingBottom	Bottom padding in twentieths of a point.
spacingTop	Top padding in twentieths of a point.
strikeThrough	If true displays text in strikethrough.
tabPositions	Each entry is an associative array with the following keys and values: 'type' (string) can be clear, left (default), center, right, decimal, bar and num. 'leader' (string) can be none (default), dot, hyphen, underscore, heavy and middleDot. 'position' (int) given in twentieths of a point. If there is a tab and the tabPositions array is not defined the standard tab position (default of 708) will be used.
textAlign	Text alignment within paragraph. Possible values are: center, right, both and distribute.
textDirection	Text flow direction within a table cell. Possible values are: lrTb, tbRl, btLr, lrTbV, tbRlV and tbLrV.
underline	Underlines text. Possible values are: single, words, double, dotted, dash and wave.
underlineColor	Underlines text with a color: 'FF0000', '000000'...
vanish	Uses a vanish style.
widowControl	Prevents Word from printing the last line of a paragraph by itself at the top of the page (widow) or the first line of a paragraph at the bottom of a page (orphan).
wordWrap	Allows line breaking at character level (default value is false).

Code samples

Example #1

config.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:config>
        <pdx:output pdx:name="output" pdx:type="docx" />
    </pdx:config>
</pdx:document>

content.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:content>
        <pdx:addStructuredDocumentTag pdx:sdtType="comboBox" >
            <pdx:alias pdx:value="Combo Box" />
            <pdx:listItems>
                <pdx:item pdx:value="1">First choice</pdx:item>
                <pdx:item pdx:value="2">Second choice</pdx:item>
                <pdx:item pdx:value="3">Third choice</pdx:item>
            </pdx:listItems>
            <pdx:paragraphStyle>
                <pdx:bold pdx:value="true" />
                <pdx:color pdx:value="FF0000" />
                <pdx:font pdx:value="Argelian" />
                <pdx:fontSize pdx:value="12" />
                <pdx:italic pdx:value="true" />
                <pdx:placeholderText pdx:value="Choose a value or write it down" />
                <pdx:underline pdx:value="true" />
            </pdx:paragraphStyle>
        </pdx:addStructuredDocumentTag>
        <pdx:addStructuredDocumentTag pdx:sdtType="date" >
            <pdx:alias pdx:value="Date Picker" />
            <pdx:paragraphStyle>
                <pdx:alias pdx:value="Combo Box" />
                <pdx:fontSize pdx:value="14" />
                <pdx:italic pdx:value="true" />
                <pdx:color pdx:value="777777" />
                <pdx:bold pdx:value="true" />
                <pdx:font pdx:value="Calibri" />
                <pdx:placeholderText pdx:value="Choose a date" />
            </pdx:paragraphStyle>
        </pdx:addStructuredDocumentTag>
        <pdx:addStructuredDocumentTag pdx:sdtType="comboBox" >
            <pdx:alias pdx:value="Dropdown menu" />
            <pdx:listItems>
                <pdx:item pdx:value="1">One</pdx:item>
                <pdx:item pdx:value="2">Two</pdx:item>
                <pdx:item pdx:value="3">Three</pdx:item>
            </pdx:listItems>
            <pdx:paragraphStyle>
                <pdx:fontSize pdx:value="12" />
                <pdx:placeholderText pdx:value="Choose a value" />
            </pdx:paragraphStyle>
        </pdx:addStructuredDocumentTag>
        <pdx:addStructuredDocumentTag pdx:sdtType="richText" >
            <pdx:alias pdx:value="Rich text" />
            <pdx:paragraphStyle>
                <pdx:placeholderText pdx:value="This text is locked" />
                <pdx:lock pdx:value="contentLocked"/>
            </pdx:paragraphStyle>
        </pdx:addStructuredDocumentTag>
    </pdx:content>
</pdx:document>

settings.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:settings>
    </pdx:settings>
</pdx:document>

PHP code

require_once 'path_to_phpdocx/classes/CreateDocx.php';

$docx = new XMLAPI('config.xml');
$docx->setDocumentProperties('settings.xml');
$docx->addContent('content.xml');

$docx->render();

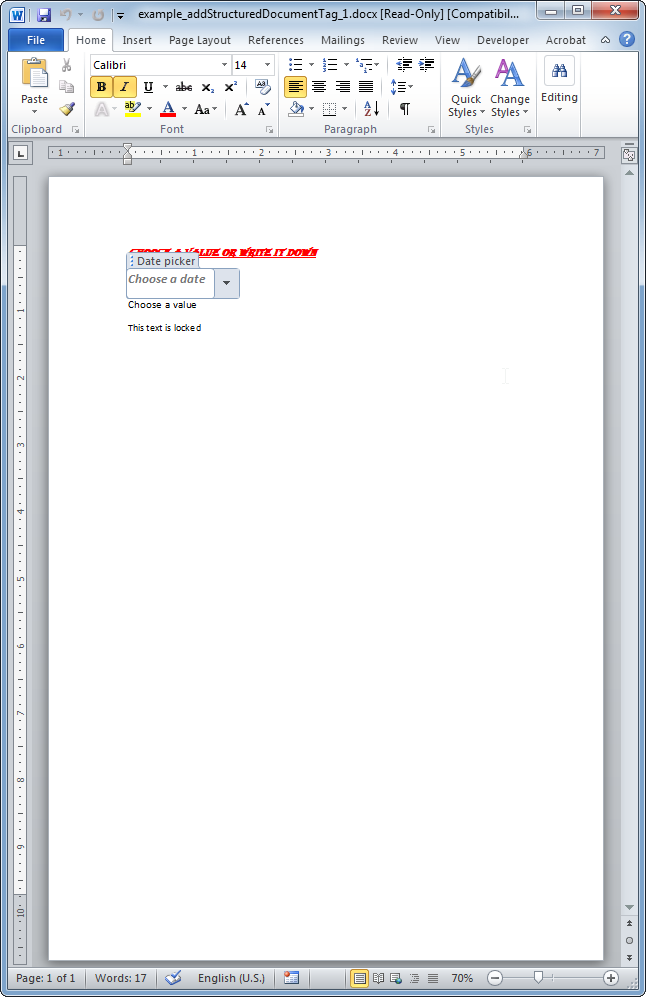

The resulting Word document looks like:
