pdx:modifyPageLayout

Modifies the Word document layout

Note

You are reading the XML API documentation. For the PHP API method please go to modifyPageLayout.

Description

Element definition

<pdx:settings>
    <pdx:modifyPageLayout pdx:paperType="">
        <pdx:layout>
            <pdx:width pdx:value="" />
            <pdx:height pdx:value="" />
            <pdx:numberCols pdx:value="" />
            <pdx:orient pdx:value="" />
            <pdx:marginTop pdx:value="" />
            <pdx:marginRight pdx:value="" />
            <pdx:marginBottom pdx:value="" />
            <pdx:marginLeft pdx:value="" />
            <pdx:marginHeader pdx:value="" />
            <pdx:marginFooter pdx:value="" />
            <pdx:gutter pdx:value="" />
            <pdx:rtlGutter pdx:value="" />
            <pdx:onlyLastSection pdx:value="" />
            <pdx:sectionNumbers pdx:value="" />
        </pdx:layout>
    </pdx:modifyPageLayout>
</pdx:settings>

This element modifies the main layout properties of the Word document like paper type size and margins.

Attributes and sub-elements

paperType

The type of paper to be used. The possible values are:

A4
A3
letter
legal
A4-landscape
A3-landscape
letter-landscape
legal-landscape
custom

options

Key	Description
width	Document width in twips (twentieths of a point).
height	Document height in twips (twentieths of a point).
numberCols	Number of columns.
orient	Page orientation (portrait or landscape).
marginTop	Top margin in twips (twentieths of a point).
marginRight	Right margin in twips (twentieths of a point).
marginBottom	Bottom margin in twips (twentieths of a point).
marginLeft	Left margin in twips (twentieths of a point).
marginHeader	Header margins in twips (twentieths of a point).
marginFooter	Footer margins in twips (twentieths of a point).
gutter	Gutter in twips (twentieths of a point). The gutter is only used for binding.
bidi	Set to 'on' for right to left languages (default value is 'off').
rtlGutter	Set to 'on' for right to left languages (default value is 'off').
onlyLastSection	If true it only modifies the last section (default value is false).
sectionNumbers	An array with the sections that you want to modify.

Code samples

Example #1

config.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:config>
        <pdx:output pdx:name="output" pdx:type="docx" />
    </pdx:config>
</pdx:document>

content.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:content>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</pdx:data>
                <pdx:textRunStyle>
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
    </pdx:content>
</pdx:document>

settings.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document  xmlns:pdx="http://www.phpdocx.com/main" >
    <pdx:settings>
        <pdx:modifyPageLayout pdx:paperType="A3-landscape">
            <pdx:layout>
                <pdx:numberCols pdx:value="3" />
            </pdx:layout>
        </pdx:modifyPageLayout>
    </pdx:settings>
</pdx:document>

PHP code

require_once 'path_to_phpdocx/classes/CreateDocx.php';

$docx = new XMLAPI('config.xml');
$docx->setDocumentProperties('settings.xml');
$docx->addContent('content.xml');

$docx->render();

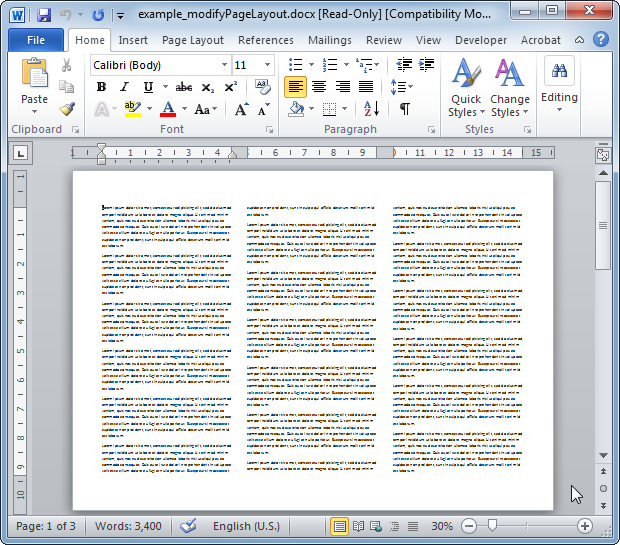

The resulting Word document looks like:
